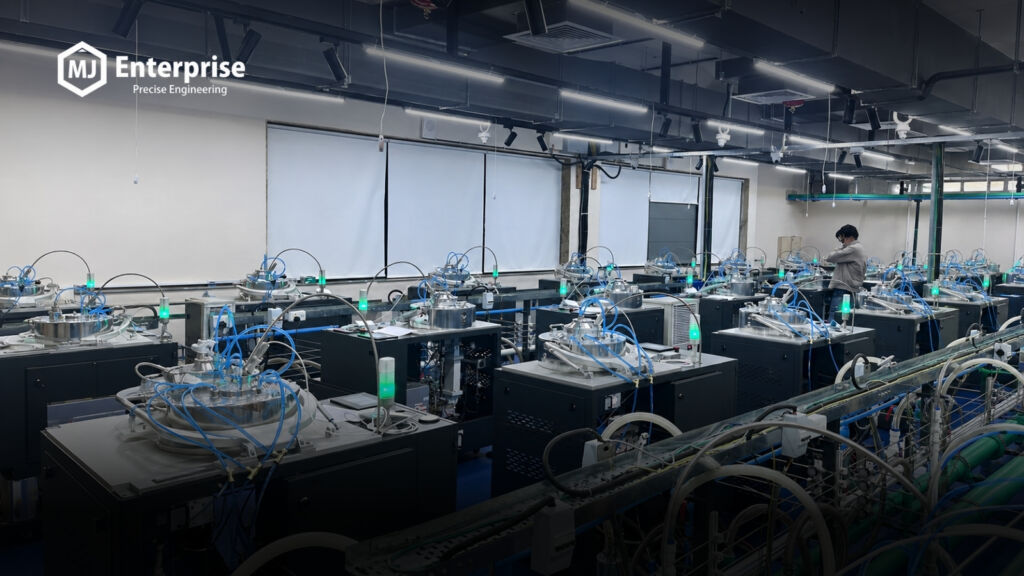

What Is Chemical Vapor Deposition (CVD)? The Definitive Guide for Manufacturers and Engineers
CVD chemical vapor deposition is a manufacturing process used to form solid material on a surface through chemical reactions involving gaseous precursors. It is widely used for thin films, semiconductor layers, carbon materials and synthetic diamond.
A controlled gas mixture enters a reactor. Energy activates the chemistry. Reactive species reach a substrate and form a solid layer. Unreacted gases and reaction products leave through the exhaust system. This basic sequence of precursor transport, chemical reaction, deposition, and product removal forms the foundation of CVD processing.
The challenge is maintaining the right conditions. Gas flow, pressure, substrate temperature, chamber design, and surface condition can all influence the final material.
How Does CVD Chemical Vapor Deposition Work?
A typical process can be understood in five stages.
First, precursor gases enter a cvd chamber at controlled flow rates. Second, the gases move toward the substrate. Third, heat, plasma, light, or another energy source activates chemical reactions. Fourth, reactive species interact with the substrate and form the desired solid material. Finally, unused gases and reaction products are removed.
Each stage affects film thickness, composition, uniformity, adhesion, and defect formation. CVD is fundamentally based on supplying gaseous precursors and activating chemical reactions at or near a substrate surface.
What Happens Inside a CVD Chamber?
Inside the reactor, the process involves gas transport and surface chemistry. Molecules must reach the substrate at a useful rate. They must then adsorb, react, and contribute to film formation.
Temperature strongly affects these reactions. At insufficient temperature, precursor decomposition may be too slow. At excessive temperature, unwanted reactions or substrate damage may occur.
Pressure and gas velocity also influence how molecules travel through the chamber and across the boundary layer near the substrate. Reactor geometry and gas distribution are therefore important.
Key CVD Chemical Vapor Deposition Process Variables
Manufacturers control several variables together.
Gas flow determines precursor supply and composition. Pressure influences transport and reaction conditions. Temperature affects reaction kinetics. Process time affects total deposition. Energy input determines how strongly the chemistry is activated.
These variables are connected. Changing pressure alters gas transport. Changing temperature changes reaction rate. Changing flow affects concentration and residence time.
Control of precursor delivery is especially important in production CVD because unstable precursor flux can lead to inconsistent deposition results.
Why CVD Chemical Vapor Deposition Repeatability Matters
If a process reaches the correct thickness in one batch but gas flow drifts in the next, the chemistry reaching the substrate may change even when temperature remains identical.
For production, the CVD machine must reproduce the target conditions consistently across repeated cycles. Process diagnostics and monitoring can also be used to understand reactant consumption and improve process control.
Main Types of CVD Chemical Vapor Deposition
Different CVD methods are used because materials and substrates need different operating conditions.
Thermal CVD
Thermal CVD uses heat to drive precursor reactions. It can provide good deposition rates and uniform films, but high temperature can limit its use with heat-sensitive substrates.
Low Pressure CVD
Low Pressure CVD operates below atmospheric pressure. Lower pressure can improve gas transport and film uniformity in many applications.
Plasma Enhanced CVD
Plasma Enhanced CVD uses plasma to activate reactive gases. The added energy allows many films to be deposited at lower substrate temperatures than conventional thermal CVD.
For example, NIST describes PECVD equipment in which radio frequency power creates plasma that ionizes reactive gases, allowing deposition at lower temperatures than conventional thermal processes.
Metalorganic CVD
Metalorganic CVD uses metalorganic precursor compounds. It is important in compound semiconductor production and applications that need accurate material composition.
Microwave Plasma CVD
Microwave Plasma CVD uses microwave energy to generate plasma. An important application is synthetic diamond growth, where hydrogen and a carbon-containing gas are activated inside a controlled reactor.
What Are the Main Parts of a CVD Machine?
A CVD machine normally includes a reaction chamber, gas delivery system, energy source, pressure control system, exhaust system, sensors, and process controls.
Configuration depends on the process. A thermal system may use a furnace. A PECVD system uses plasma power supplies and electrodes. A microwave plasma system requires microwave generation and coupling hardware.
Reliable cvd machine manufacturers therefore design equipment around the chemistry and application rather than treating every CVD process as the same platform.
Advantages and Limitations of CVD Chemical Vapor Deposition
CVD can produce uniform, strongly bonded films with good control over composition and thickness. Gaseous precursors can also reach complex surfaces, so CVD can coat geometries that are difficult for directional deposition methods.
Some processes require high temperature. Precursors can be toxic, corrosive, flammable, or expensive. Reaction products may need treatment. Equipment must therefore include suitable gas handling, monitoring, and exhaust systems.
Where Is CVD Used?
CVD is used in semiconductor manufacturing for insulating, conductive, and protective films. It is also used for tool coatings, optical materials, compound semiconductors, solar technologies, carbon materials, and diamond growth.
A cutting tool can receive a CVD coating to improve durability. A semiconductor wafer can receive a controlled insulating film. A diamond reactor uses plasma activated carbon chemistry to build crystalline diamond on a seed.
How Manufacturers Should Select a CVD Process
Selection should begin with the required material, substrate, film properties, temperature limit, production volume, and operating pressure.
Engineers should then evaluate precursor chemistry, reactor design, gas distribution, energy source, exhaust requirements, cleaning needs, automation, and process monitoring.
A suitable process produces the target material consistently while remaining safe, maintainable, and practical for the intended production scale.
Conclusion
CVD chemical vapor deposition is a family of processes that use gas-phase chemistry to form solid material on a substrate.
For manufacturers and engineers, understanding the relationship between chemistry, transport, temperature, pressure, chamber design, and process control is essential. When these factors are managed as one system, CVD becomes a powerful method for producing advanced materials with repeatable properties.
Need a CVD machine for your manufacturing application? Talk to MJ Enterprise for engineered CVD solutions built around your process needs.
FAQs
What is CVD chemical vapor deposition in simple terms?
CVD is a process where gases react or decompose near a substrate and form a solid material on its surface. The deposited material can form a thin film, coating, semiconductor layer, or crystalline material.
How does a CVD machine work?
A CVD machine supplies controlled precursor gases to a chamber and provides heat, plasma, or another energy source to activate chemical reactions. The resulting material deposits on the substrate while unused gases and reaction products are removed.
What is the difference between CVD and PVD?
CVD forms material through chemical reactions involving gaseous precursors. PVD transfers material physically from a source through processes such as evaporation or sputtering and is generally more directional.
What are the main types of chemical vapor deposition?
Common types include Thermal CVD, Low Pressure CVD, Plasma Enhanced CVD, Metalorganic CVD, and Microwave Plasma CVD. The correct method depends on the material, temperature limit, substrate, and required film properties.
Which industries use CVD technology?
CVD is used in semiconductor manufacturing, electronics, cutting tools, optics, solar energy, advanced materials, and synthetic diamond production. Each industry uses different process conditions and reactor configurations.
